Name: Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SP-100K
Price: 157,805.00 USD
Availability: InStock

Hogar > productos > Máquina de la soldadura por puntos >

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

customizable AC pulse spot welder

hardware industry spot welding machine

adjustable pulse welding equipment

Lugar de origen:

Porcelana

Nombre de la marca:

HWASHI

Certificación:

CE/CCC/ISO

Número de modelo:

WL-SP-100K

Éntrenos en contacto con

Pida una cita

Detalles del producto

Nombre del producto:

Hwashi Máquina de soldadura por pulso de punto de CA personalizable para diferentes requisitos de so

Aplicación:

soldadura del acero de aluminio de cobre

Tamaño:

Las demás partidas de la caja:

Peso:

450 kg

Estándar:

CE/CCC/ISO

Garantía:

12 meses

Pago y términos de envío

Cantidad de orden mínima

1 set

Precio

Negociable

Detalles de empaquetado

Paquete de madera digna de mar

Tiempo de entrega

7-30 días hábiles después de recibir su pago

Condiciones de pago

L/C, T/T

Capacidad de la fuente

50 conjuntos por mes

Productos relacionados

Vídeo

Hwashi 220-380V Stainless Steel Capacitor Discharge Spot Welder Stainless Steel Milk Pot Welding Machine, Pot Handle Spot Welder

Consiga el mejor precio

Vídeo

HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine

Consiga el mejor precio

Vídeo

Hwashi Automatic Steel Wire Ring Making and Welding Machine / Butt Welding Machine

Consiga el mejor precio

Vídeo

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

Consiga el mejor precio

Éntrenos en contacto con

+8613380655800

marketing@hwashi.com

Contacto ahora

Descripción de producto

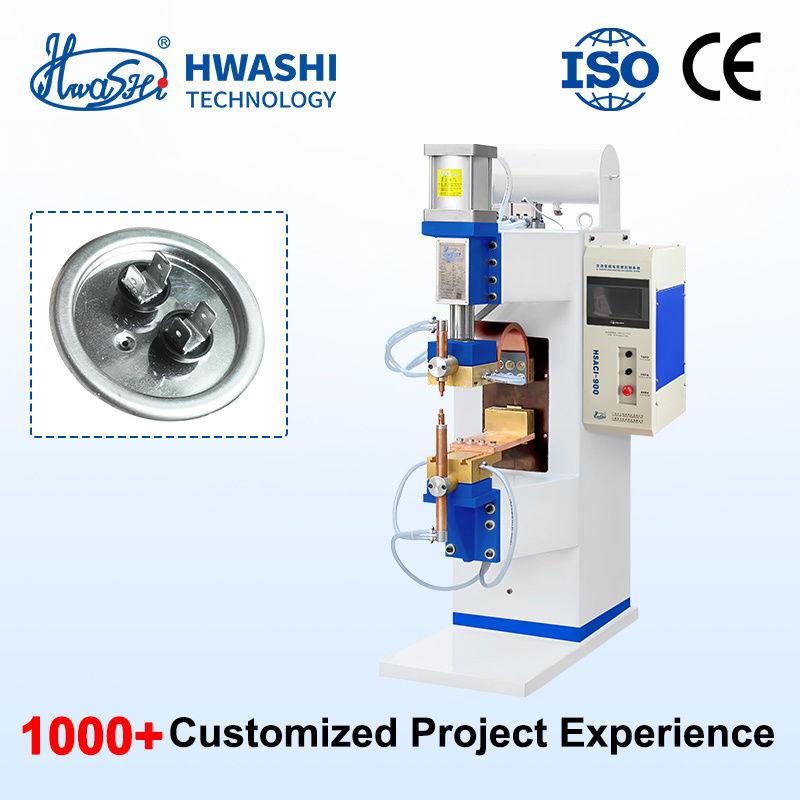

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

Product Description

AC pulse spot welding machine utilizes the general mains supply to lower the voltage and increase the electric curent, Such kind of lowvoltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due tothe resistance of work piece, high temperature will occur so the metal wil therefore generate high heat to make the work piecesin molten condition. Thus, the purpose of welding the two work pieces is achieved.

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 1

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 2

Features of The AC Pulse Spot Welding Machine
1) Three control functions: constant primary and secondary current, constant voltage;
2) Automatic adjustment of welding power and welding current;
3) Ensure the automatic cycle of each program segment of welding process in order to achieve complete automation;
4) When the current is too low, it will automatically electrify to conduct repair welding;
5) Be able to use the control panel to set parameters for different welding models directly. Convenient operation, easy adjustment;
6) Both single welding and continuous welding are available and each welding cycle has three welding conditions;
7) The intensity and time of welding current of each welding condition could be set separately. In the meantime, the current could be set to gradual up or down;
8) Pneumatic control (action output); the pneumatic control could be delayed;
9) Be able to store 9 types of welding models. Be able to select and adjust different welding models by choosing the number of models;
10) Silicon controlled adopts phase shift to trigger and the synchronous voltage is from the grid voltage to ensure the silicon controlled and grid will conduct synchronous phase shift trigger so as to achieve precise adjustment of the welding current and to meet the requirement of welding different materials;
11) When the power grid voltage fluctuates, the automatically compensation can make the welding current more stable. Thus, the welding quality could be guaranteed even though the grid voltage is under bad situation.

Model	Input Voltage	Related Capacity	Max Short Circuit Current	Duty Cycle Rate	Electrode Force	Electrode Stroke	Cooling Water
	V	KVA	KA	%	KG	mm	L/min
WL-S-5K	220	5	1	25	30	25	4
WL-S-10K	380 1PH	10	2.5	25	100	50	4
WL-S-16K	380 1PH	16	4.5	25	100	50	6
WL-SP-25K	380 1PH	25	7	25	350	80	6
WL-SP-35K	380 1PH	30	9	25	350	80	6
WL-SP-50K	380 1PH	50	13	25	800	100	6
WL-SP-75K	380 1PH	75	18	25	1000	100	8
WL-SP-100K	380 1PH	100	20	25	1000	10	8
WL-SP-150K	380 1PH	150	25	25	1000	8100	10
WL-SP-200K	380 1PH	200	30	25	1500	100	10
WL-SP-250K	380 1PH	150	38	25	1500	100	12
WL-SP-300K	380 1PH	300	45	25	2000	100	16

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 3
