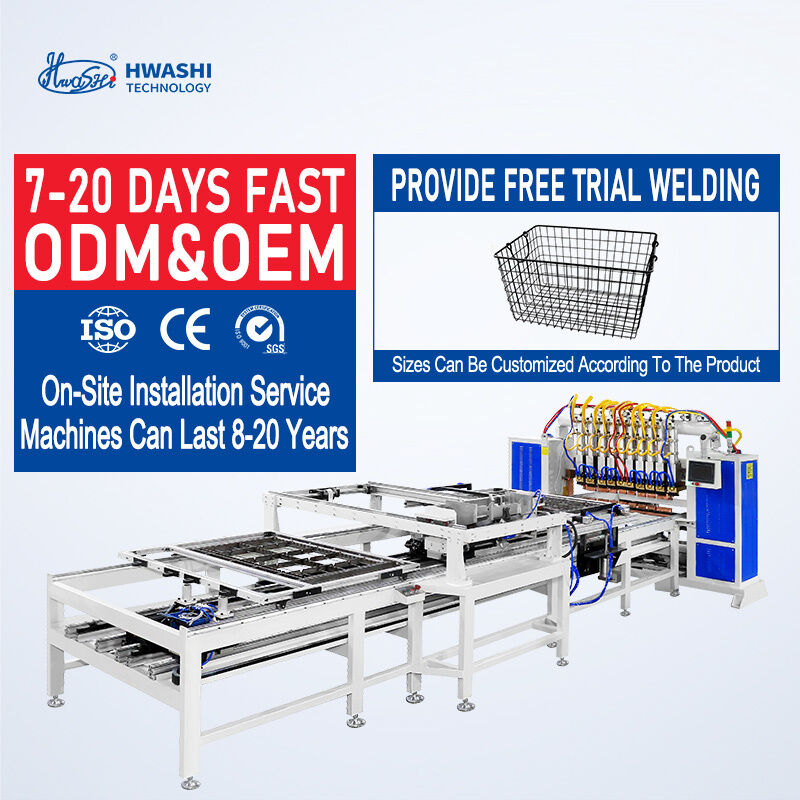

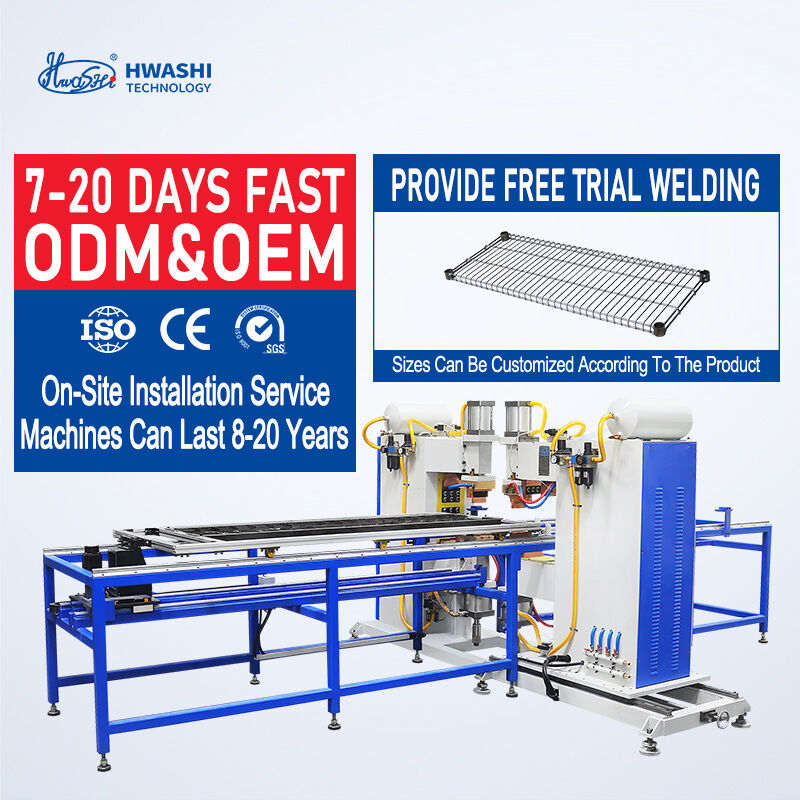

Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System
Brand: Guangdong Hwashi Technology inc.
SKU: Se trata de una serie de pruebas.
Price: 225,000.00 USD
Availability: InStock

Hogar > productos > Máquina de soldadura automática de cables >

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Automatic wire mesh welding machine with warranty

Double-layer feeder welding machine

Automatic wire filling welding system

Lugar de origen:

Porcelana

Nombre de la marca:

HWASHI

Certificación:

CE/CCC/ISO

Número de modelo:

Se trata de una serie de pruebas.

Éntrenos en contacto con

Pida una cita

Detalles del producto

Nombre del producto:

Hwashi Máquina de soldadura de tubos de gas para automóviles

Garantía:

12 meses

Condición:

NUEVO

Vida útil:

8-10 años

Fuerza del electrodo:

1500 kilos

Trazo del electrodo:

100 mm

Calor de salida:

10000

Pago y términos de envío

Cantidad de orden mínima

1 juego

Precio

Negociable

Detalles de empaquetado

Paquete de madera digna de mar

Tiempo de entrega

7-30 días hábiles después de recibir su pago

Condiciones de pago

L/C,T/T

Capacidad de la fuente

50 conjuntos por mes

Productos relacionados

Vídeo

Soldadora automática de hilos de alta velocidad con alimentación automática de hilos y control de soldadura preciso para la fabricación de estantes

Consiga el mejor precio

Vídeo

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

Consiga el mejor precio

Vídeo

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Consiga el mejor precio

Vídeo

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Consiga el mejor precio

Éntrenos en contacto con

+8613380655800

marketing@hwashi.com

Contacto ahora

Descripción de producto

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

This wire welding machine features a single-head long arm welding structure with automatic X and Y axis workpiece mold movement. By inputting coordinate data of welding position and current, it achieves fully automatic welding. Simply load materials manually and remove finished pieces. Ideal for welding mesh within 1000mm × 1000mm range.

Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm × 1000mm

The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. Operators can prepare materials for next welding while current work continues, reducing labor costs and maximizing efficiency.

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
Automatic wire filling system for continuous operation
Customizable dimensions to match specific product requirements
1200mm effective welding width for large mesh products
Automatic double-layer feeder for improved productivity

Technical Parameters

Product Name	Wire Mesh Welding Machine
Welding Power Source	Three-phase MF DC or two-phase AC power supply
High Speed Wire Processing	5× normal speed for 2mm to 4mm wires
2D Wire Handle Bending	2-6mm wire bending capability
Welding Heads and Fixtures	Custom designed per product drawings
Wire Frame Double T-Butt Machine	Dual-head cross bar welding design

Applications

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
