Name: Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS -100K
Price: 225,000.00 USD
Availability: InStock

Hogar > productos > Máquina de la soldadura continua >

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

automatic sink rolling machine

welding production line equipment

water tank seam welder

Lugar de origen:

Porcelana

Nombre de la marca:

Hwashi

Certificación:

CE,CCC,ISO

Número de modelo:

WL-FS -100K

Éntrenos en contacto con

Pida una cita

Detalles del producto

Nombre del producto:

Máquina de soldadura de costura de lavabo de cocina de acero inoxidable

Ancho del cinturón de abrasivo:

Soldadura semiautomática del fregadero

Tamaño:

780x1250x1800mm

Sistema de control:

SOCIEDAD ANÓNIMA

ancho de soldadura:

5-20 mm

espesor mínimo de la soldadura:

0.2 mm

Voltaje:

380V, fase 2, 50/60 Hz

Tipo de máquina:

Máquina de soldadura de resistencia

Vida útil:

8-10 años

Peso (kg):

400 kg

Pago y términos de envío

Cantidad de orden mínima

Precio

Negociable

Detalles de empaquetado

Paquete de madera digna de mar

Tiempo de entrega

7-30 días hábiles después de recibir su pago

Condiciones de pago

T/T, L/C

Capacidad de la fuente

50 conjuntos por mes

Productos relacionados

Vídeo

Stainless Steel Sink Grinding Machine CNC Automatic Sink Edge Polishing Machine

Consiga el mejor precio

Vídeo

Máquina de soldadura de costura/rodillo robusta y personalizada para radiador de calefacción de bidones de aceite, combustible de avión

Consiga el mejor precio

Vídeo

Máquina de soldadura longitudinal de alta calidad Hwashi para soldadura automática de costuras de tanques de combustible

Consiga el mejor precio

Vídeo

Máquina automática de soldadura de costura con tipo de motor de bomba

Consiga el mejor precio

Éntrenos en contacto con

+8613380655800

marketing@hwashi.com

Contacto ahora

Descripción de producto

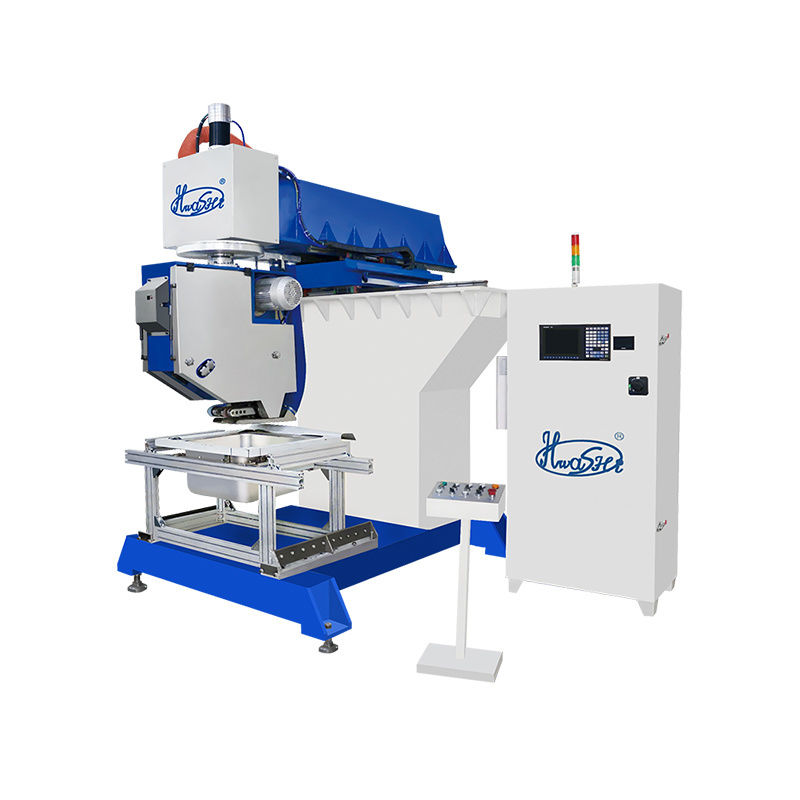

Hwashi WL-AT-PM1200 Automatic Sink Rolling Wheel Grinding Machine,Water tank Welding Production Line

Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Suitable for welding the sink within the range of 1600x700x300mm. (customized)

Suitable for welding the sink within the range of 1600x700x300mm. (customized)
Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

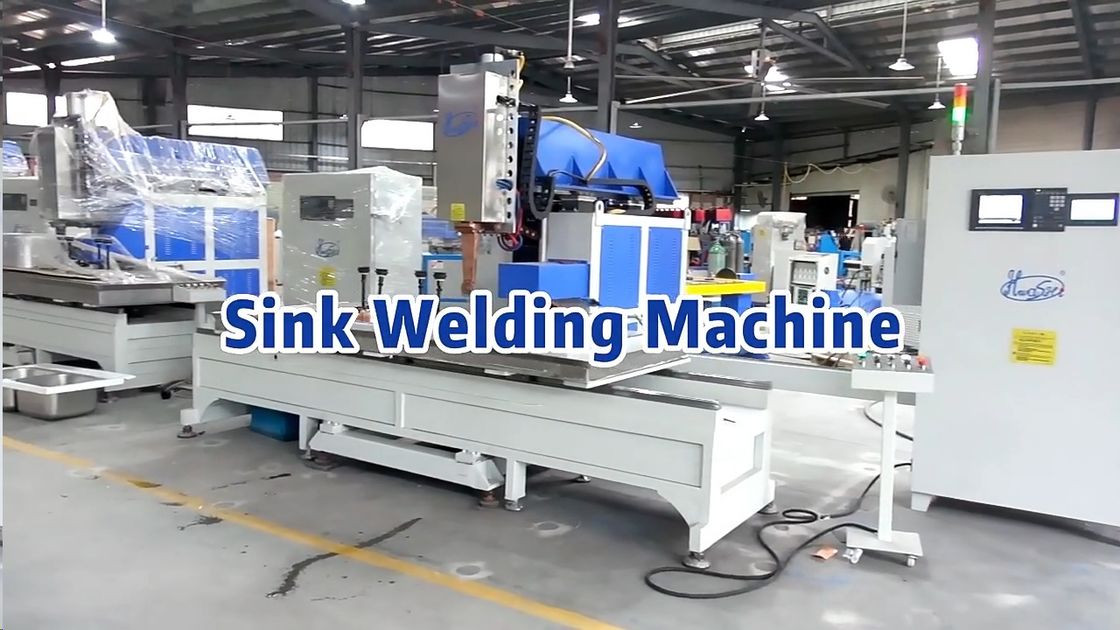

CNC 3 Axis Stainless Steel Sink Seam Welding Machine

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 3

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 4

CNC Sink Edges Grinding and Polishing Machine

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.
